ParseUI
This function creates and configures UI widgets from a parameters object. It iterates through the provided parameters and creates UI widgets, returning the last created widget. This allows the UI to be declared using nested objects. ui_builder is a tool that can be used to design UIs visually.
Syntax
export function ParseUI(...params: any[]): mod.UIWidget | undefined;
Parameters
| Parameter | Type | Description |
|---|---|---|
params |
any[] |
Variable number of UI widget configuration objects |
Return Values
| Type | Description |
|---|---|
mod.UIWidget | undefined |
The last UI widget created from the parameters, or undefined if no parameters provided |

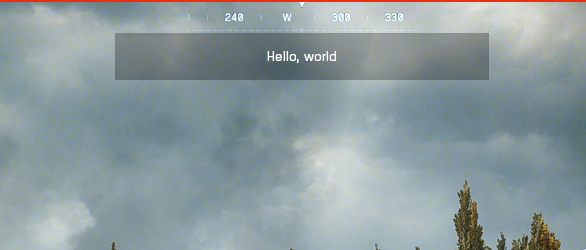

Example
import * as modlib from 'modlib';
export function OnPlayerDeployed(eventPlayer: mod.Player) {
const containerPc2x1Widget = modlib.ParseUI(
{
name: "Container_PC2X1",
type: "Container",
position: [0, 46.88],
size: [559.74, 69.66],
anchor: mod.UIAnchor.TopCenter,
visible: true,
padding: 0,
bgColor: [0.0314, 0.0431, 0.0431],
bgAlpha: 0.5,
bgFill: mod.UIBgFill.Blur,
children: [
{
name: "Hello World",
type: "Text",
position: [0, 0],
size: [273.91, 57.56],
anchor: mod.UIAnchor.Center,
visible: true,
padding: 0,
bgColor: [0.2, 0.2, 0.2],
bgAlpha: 1,
bgFill: mod.UIBgFill.None,
textLabel: mod.stringkeys.Hello_World,
textColor: [1, 1, 1],
textAlpha: 1,
textSize: 24,
textAnchor: mod.UIAnchor.Center
}
]
}
) as mod.UIWidget;
mod.SetUIWidgetVisible(containerPc2x1Widget, true);
}
{
"Hello_World": "Hello, world"
}
